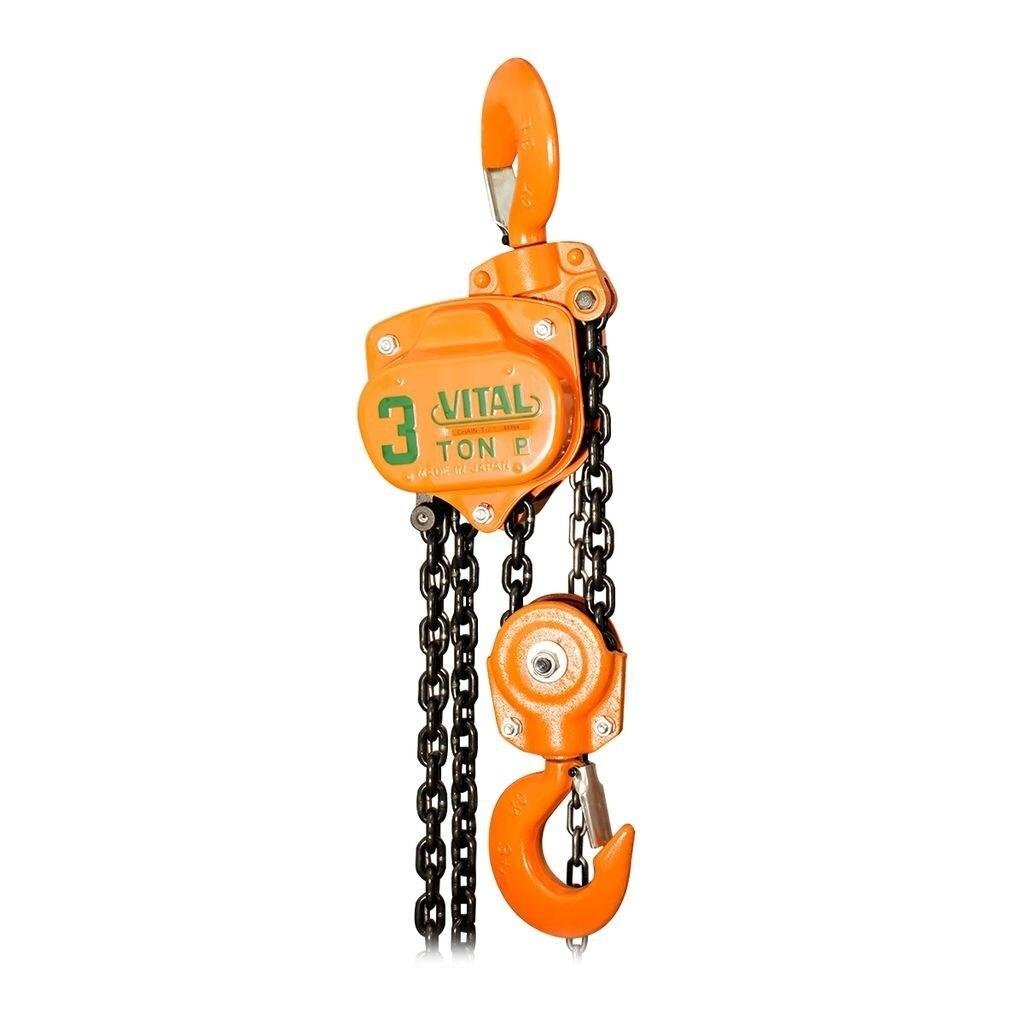

VITAL VP5-30 3 Ton Manual Chain Hoist – 3M Lift
Heavy-Duty Hand Chain Block – 3000kg Capacity for Workshops, Warehouses & Construction
Overview
The VITAL VP5-30 3 Ton Manual Chain Hoist is a professional hand chain block designed for lifting heavy loads up to 3000kg with minimal effort. Features a 3-meter lifting height, double gear system, and Grade 80 alloy load chain. Ideal for workshops, warehouses, factories, construction sites, and garages in Ghana. No electricity needed.
Key Features
- 3 Ton (3000kg) Capacity: Lifts engines, steel beams, machinery, and heavy materials safely.
- 3 Meter Standard Lift: 3m lifting height with optional longer chain on request. Efficient for low and high lifting.
- Double Pawl Safety Brake: Automatic Weston-style brake holds load securely even if chain is released. No slipping.
- Grade 80 Load Chain: 10mm x 30mm hardened alloy steel chain. Anti-corrosion black finish. 4x safety factor.
- Forged Hooks: 360° swivel hooks with safety latches prevent accidental detachment. Forged steel, heat treated.
- Low Effort Operation: Hand chain requires only 36kg pull to lift full 3 ton load. Precision spur gears.
- Compact Steel Housing: Powder-coated steel frame with impact-resistant cover. Fits in tight spaces.

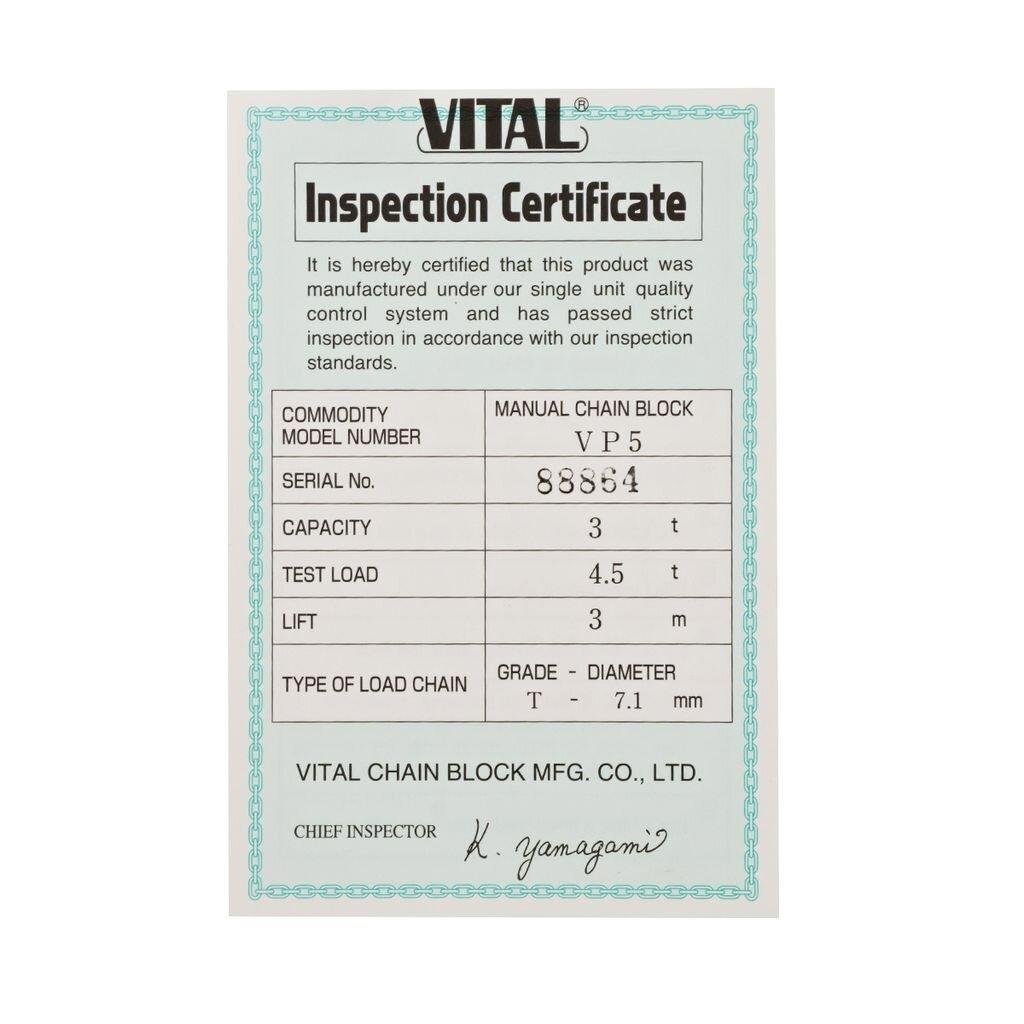

- Meets CE / GS Standards: Tested to 150% overload. Complies with EN 13157 safety standards.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VITAL |
| Model | VP5-30 |
| Type | Manual Hand Chain Hoist / Chain Block |
| Capacity | 3 Ton / 3000 kg |
| Standard Lift Height | 3 Meters |
| Load Chain | 10mm x 30mm, Grade 80, Single Fall |
| Hand Chain Length | 2.5 Meters (operates lift) |
| Effort to Lift Full Load | 36 kg pull |
| Headroom / Min Distance | 510 mm |
| Number of Chain Falls | 2 Falls |
| Brake System | Double Pawl Mechanical Brake |
| Material | Alloy Steel Gears, Hardened Load Chain, Forged Hooks |
| Net Weight | 24.5 kg |
| Safety Factor | 4:1 |

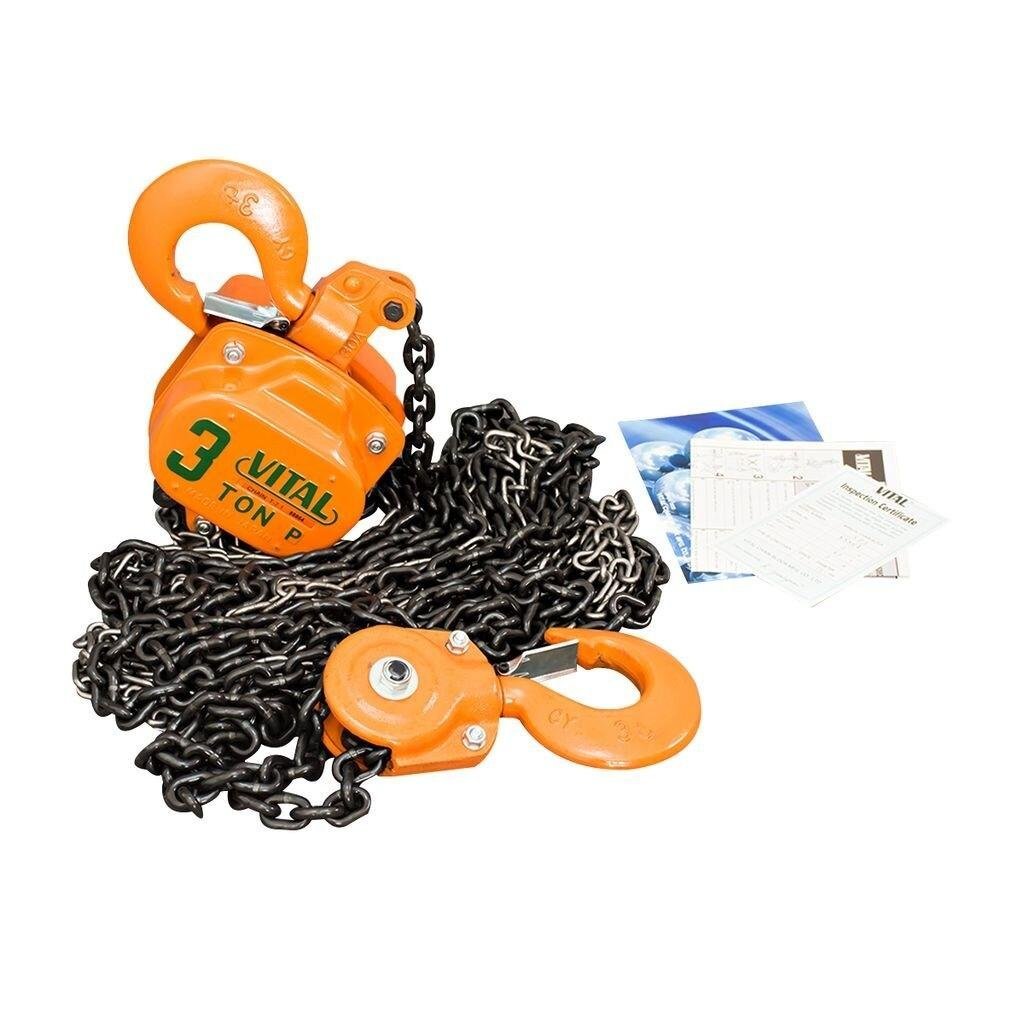

What’s Included
- 1x VITAL VP5-30 3 Ton Chain Hoist with 3m Lift Chain
- 1x 2.5m Hand Chain
- 1x Top and Bottom Forged Hooks with Safety Latches
- 1x Chain Container Bag (optional for chain storage)

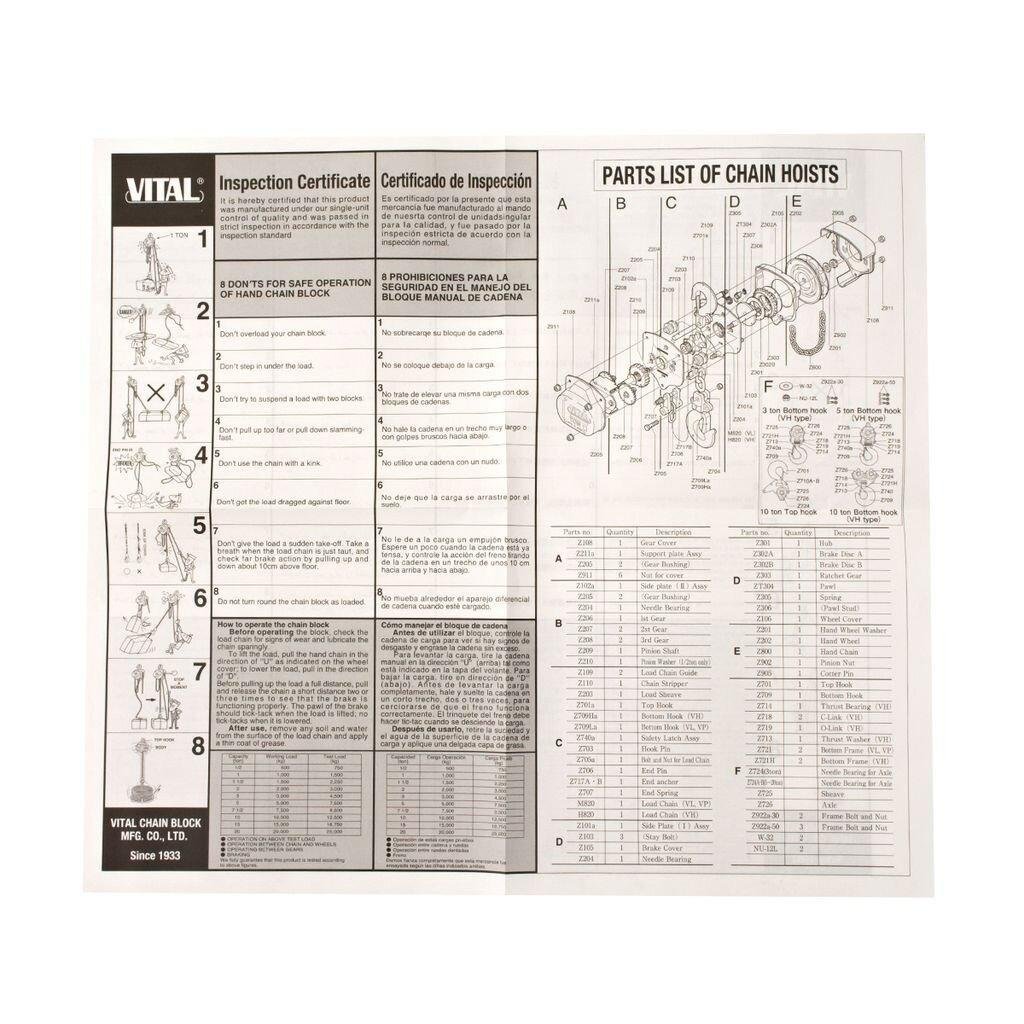

- 1x Instruction & Safety Manual
Best for

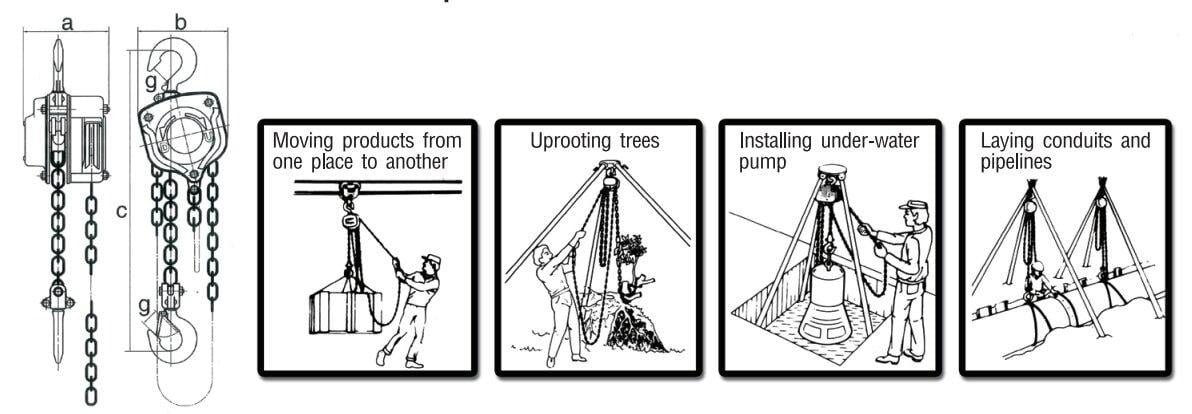

Lifting engines in garages, steel in fabrication shops, goods in warehouses, concrete blocks on construction sites, machinery installation in factories, and general material handling.
How to Use Safely
- Inspect: Check hooks, chain, and brake before each lift. No twisted chain.
- Hang Securely: Attach top hook to I-beam trolley or solid anchor rated for 3T+.
- Load Correctly: Center load on bottom hook. Close safety latch.
- Lift: Pull hand chain hand-over-hand to lift. Pull opposite side to lower.
- Never Overload: Do not exceed 3 ton. Do not lift people.
Product Tags: chain hoist, manual chain hoist, 3 ton hoist, VP5-30, VITAL hoist, chain block, hand chain hoist, 3 ton chain block, lifting hoist, 3m lift hoist, industrial hoist, workshop hoist ghana
SKU: VITAL-VP5-30-3T
Note: For vertical lifting only. Not for dragging. Use with beam trolley or gantry rated for 3 ton minimum.
