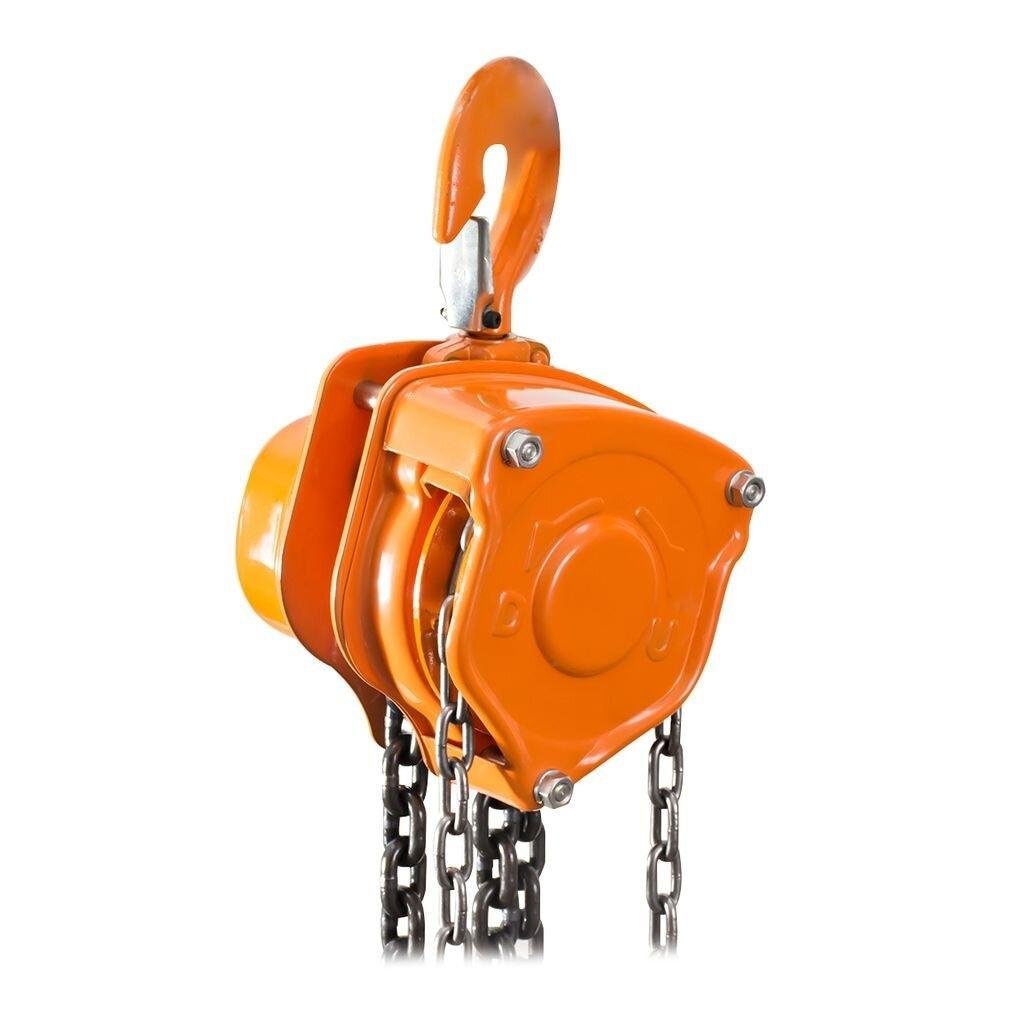

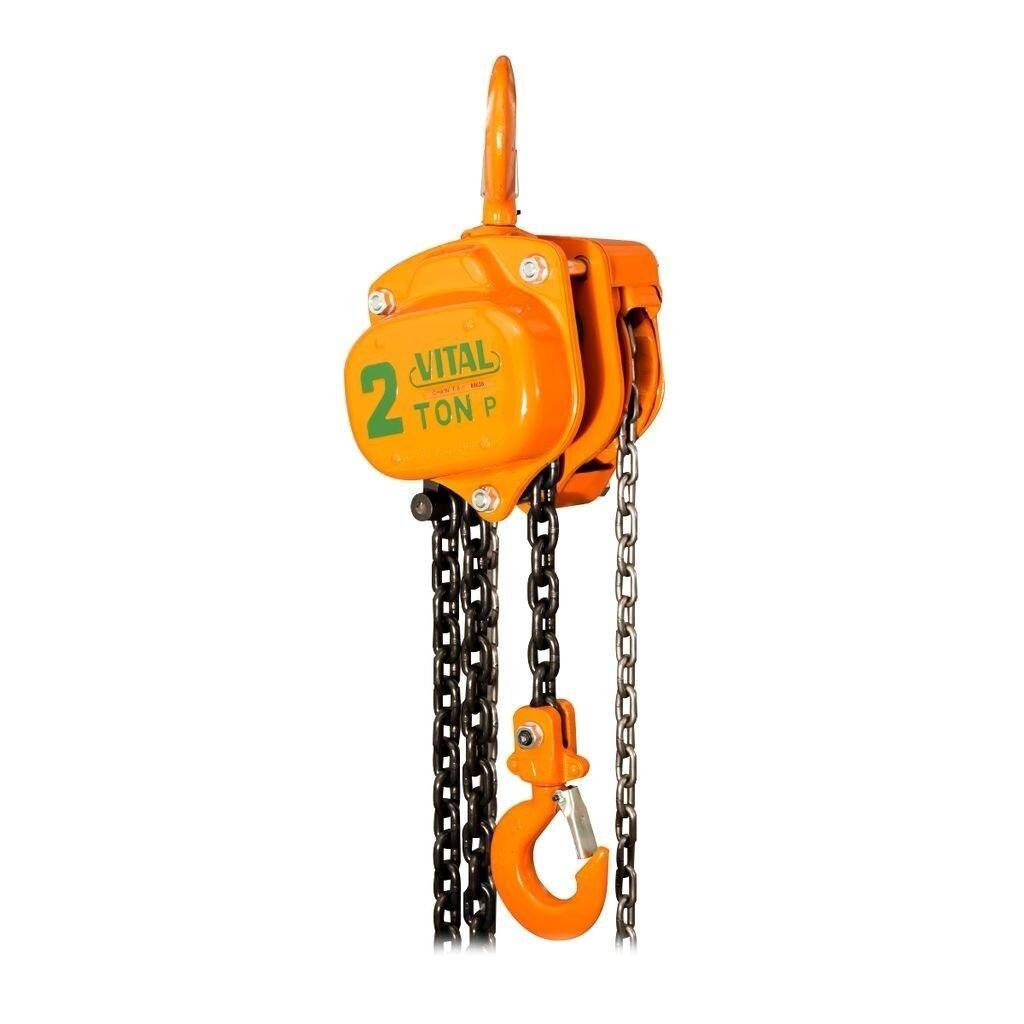

VITAL VP5-20 2.0 Ton Manual Chain Hoist – 3M Lift
Heavy-Duty 2000kg Hand Chain Block for Workshops, Warehouses & Garages
Overview
The VITAL VP5-20 2.0 Ton Manual Chain Hoist is a professional hand-operated chain block designed to lift heavy loads up to 2000kg with minimal effort. Features 3-meter lifting height, double pawl safety brake, and Grade 80 hardened load chain. No electricity required. Ideal for auto workshops, warehouses, construction sites, and factories in Ghana.
Key Features
- 2 Ton (2000kg) Capacity: Lifts engines, machinery, steel beams, and construction materials safely.
- 3 Meter Standard Lift: 3m lifting height. Longer lift heights available on request.
- Double Pawl Safety Brake: Weston-style automatic brake locks load securely. Prevents dropping even if hand chain is released.
- Grade 80 Load Chain: 8mm x 24mm hardened alloy steel chain. Black oxide anti-corrosion finish. 4x safety factor.
- Forged Swivel Hooks: 360° rotating top and bottom hooks with safety latches. Heat-treated forged steel.
- Low Effort Pull: Requires only 34kg hand pull to lift full 2 ton load. Precision spur gears reduce fatigue.
- Compact Steel Housing: Powder-coated steel frame with impact-resistant cover. Works in tight headroom.

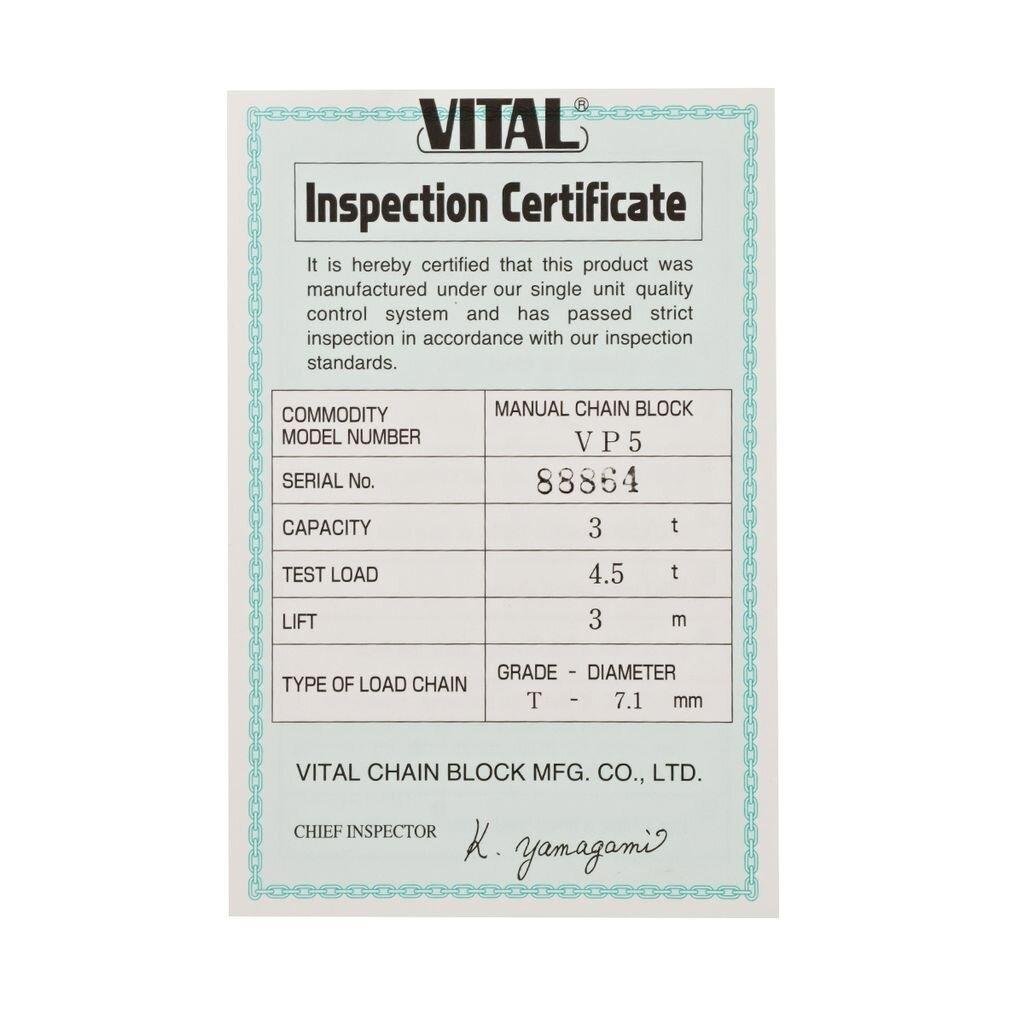

- Certified Safety: Tested to 150% overload. Complies with EN 13157 and CE standards.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VITAL |
| Model | VP5-20 |
| Type | Manual Hand Chain Hoist / Chain Block |
| Capacity | 2 Ton / 2000 kg |
| Standard Lift Height | 3 Meters |
| Load Chain Diameter | 8mm x 24mm, Grade 80, Single Fall |
| Hand Chain Length | 2.5 Meters |
| Effort to Lift Full Load | 34 kg |
| Headroom / Min Distance Between Hooks | 444 mm |
| Number of Chain Falls | 1 Fall |
| Brake System | Double Pawl Mechanical Brake |
| Material | Alloy Steel Gears, Hardened Chain, Forged Hooks |
| Net Weight | 14.0 kg |
| Safety Factor | 4:1 |

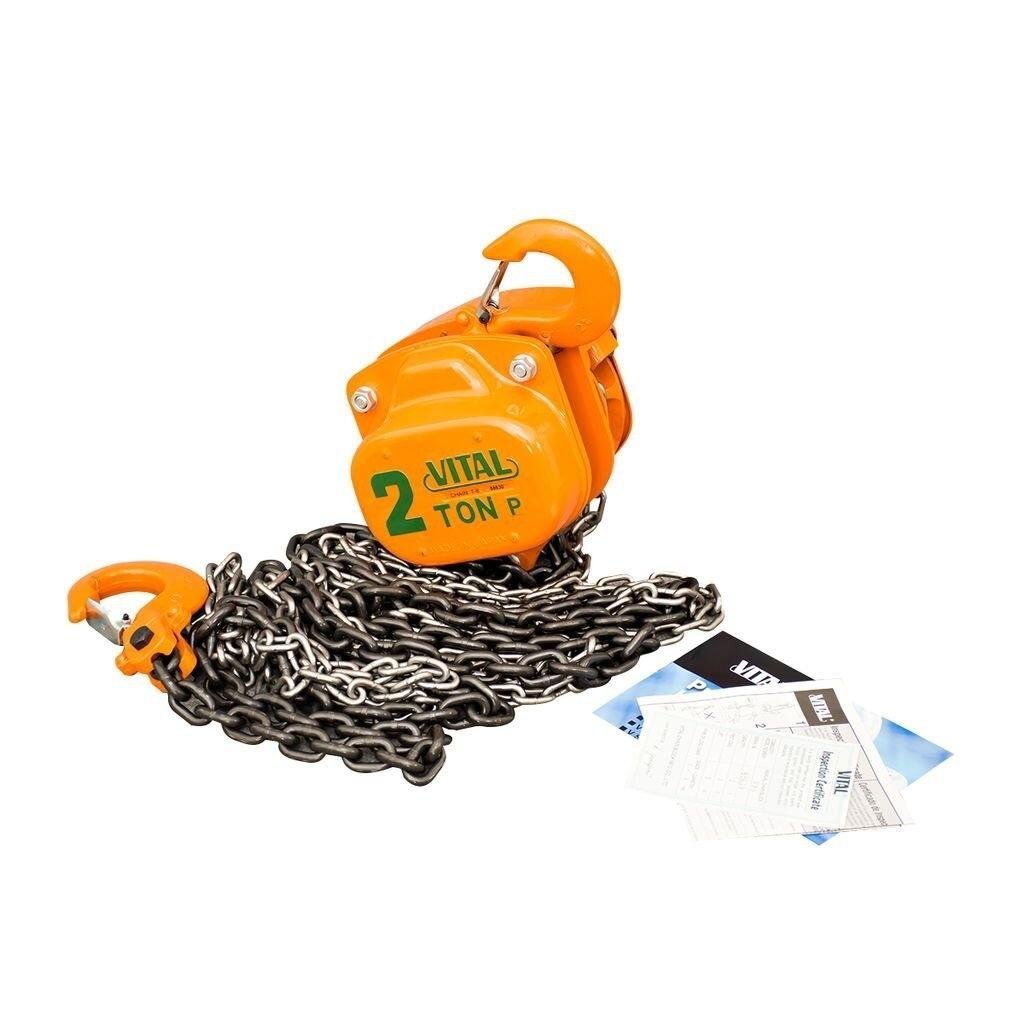

What’s Included
- 1x VITAL VP5-20 2 Ton Chain Hoist with 3m Load Chain
- 1x 2.5m Hand Chain
- 1x Top and Bottom Forged Hooks with Safety Latches

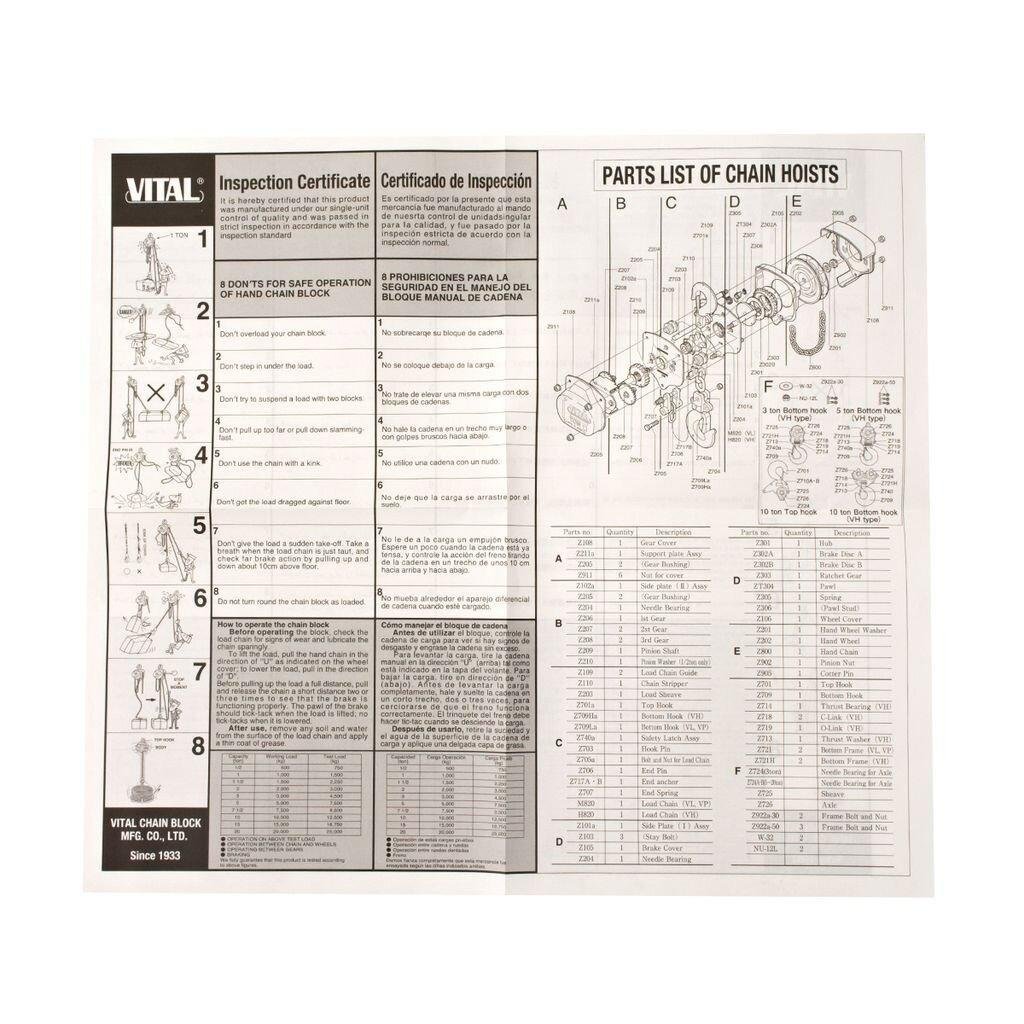

- 1x Instruction & Safety Manual

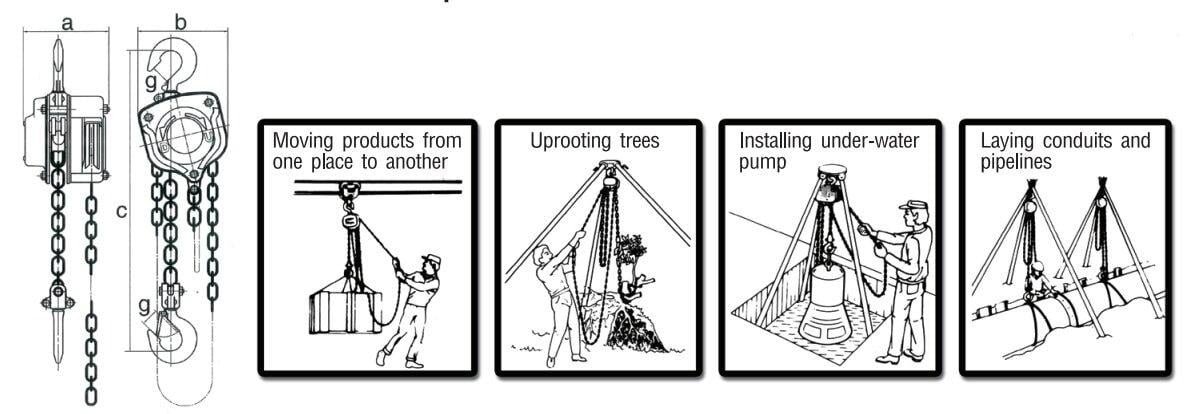

Applications
| Industry | Use Case |
|---|---|
| Auto Garage | Engine removal and installation |
| Workshop | Steel fabrication, machine positioning |
| Warehouse | Loading/unloading heavy goods |
| Construction | Lifting blocks, beams, and formwork |
| Factory | Machinery maintenance and installation |
Safety Instructions
- Inspect Daily: Check chain for twists, hooks for cracks, and brake function.
- Anchor Point: Hang only on beam trolley or structure rated for 2T minimum.
- Center Load: Ensure load is centered on hook. Always close safety latch.
- Vertical Lift Only: Do not use for dragging or at an angle.
- Never Overload: Do not exceed 2000kg. Never lift people.
Product Tags: chain hoist, manual chain hoist, 2 ton hoist, VP5-20, VITAL hoist, chain block 2 ton, hand chain hoist, lifting hoist, 3m lift hoist, 2000kg hoist, industrial hoist, workshop hoist ghana
SKU: VITAL-VP5-20-2T
Warranty: 12 Months Manufacturer Warranty
Note: For vertical lifting only. Use with gantry or I-beam rated for 2 ton or more.
