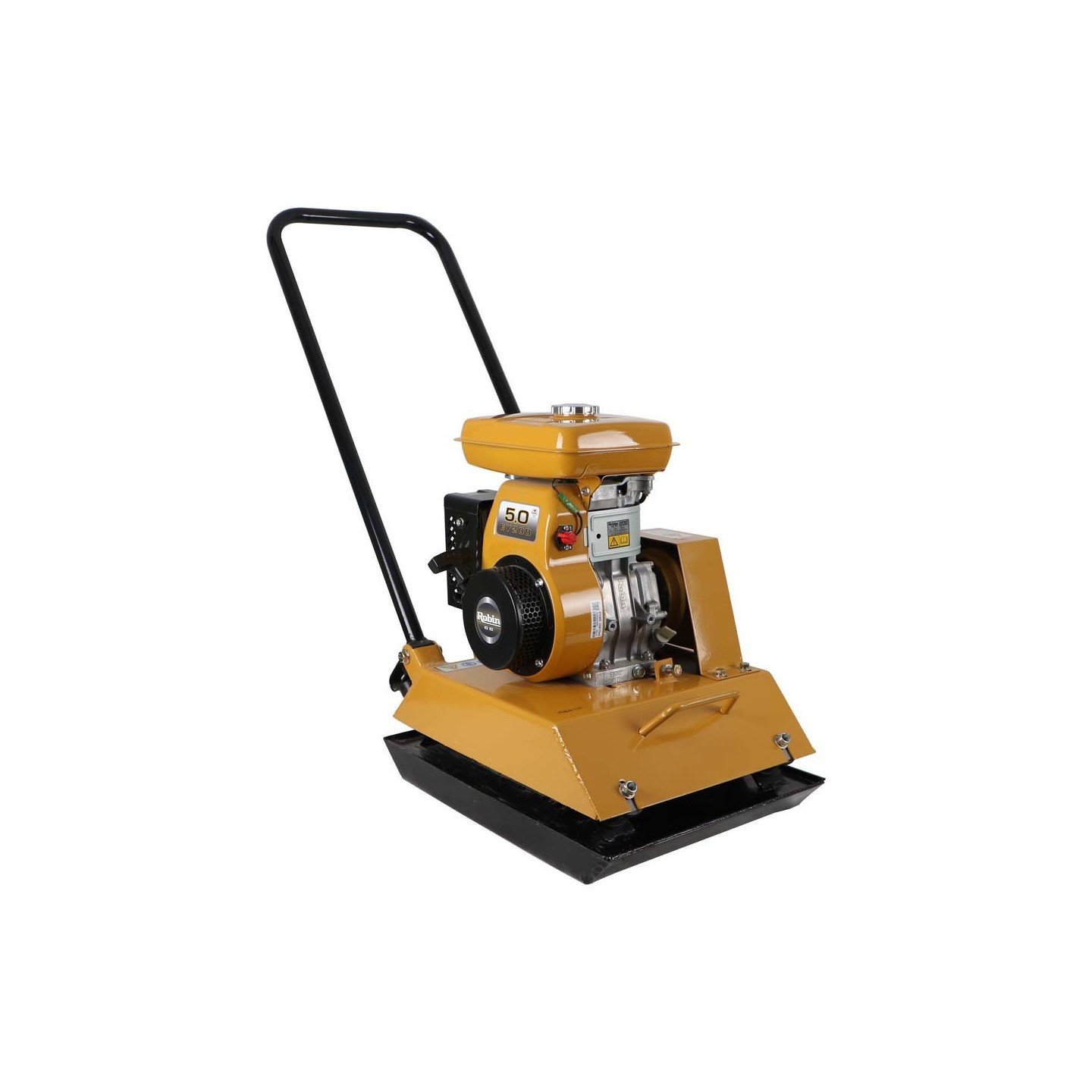

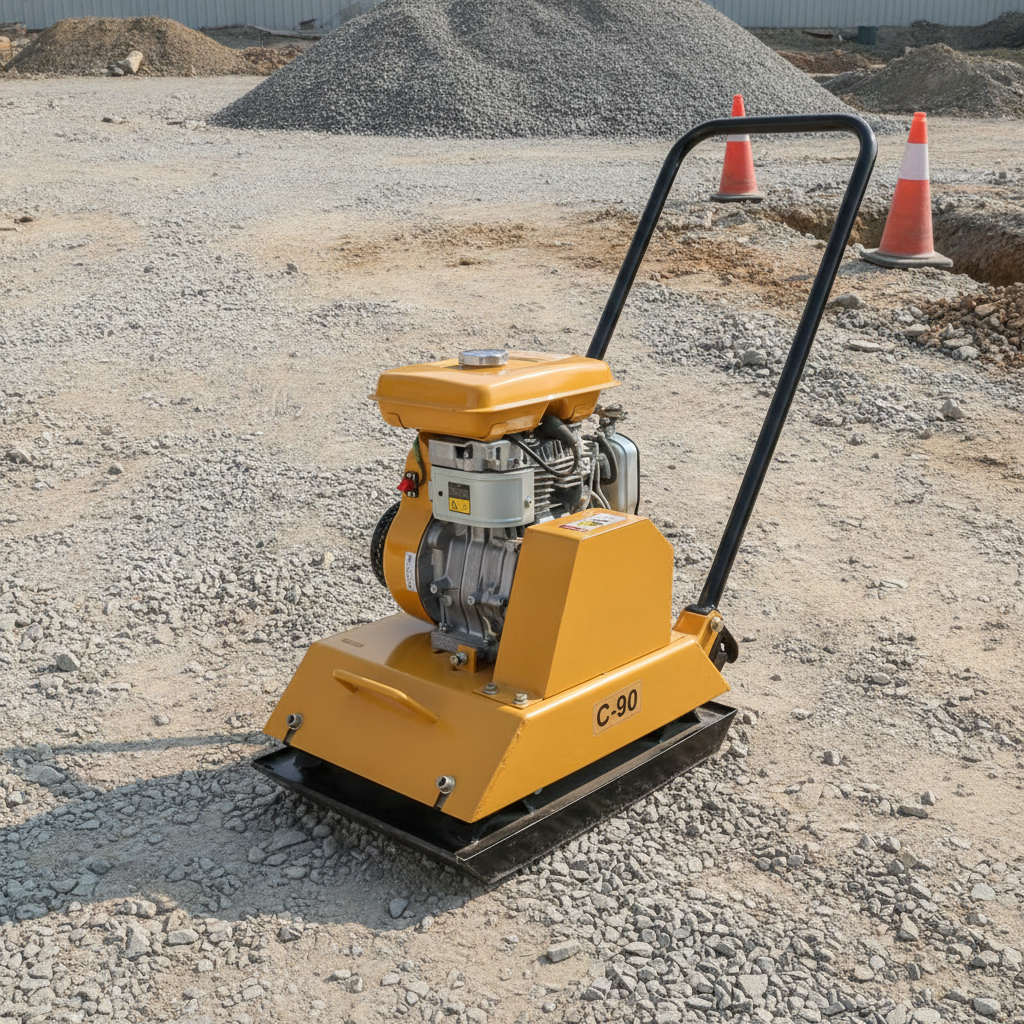

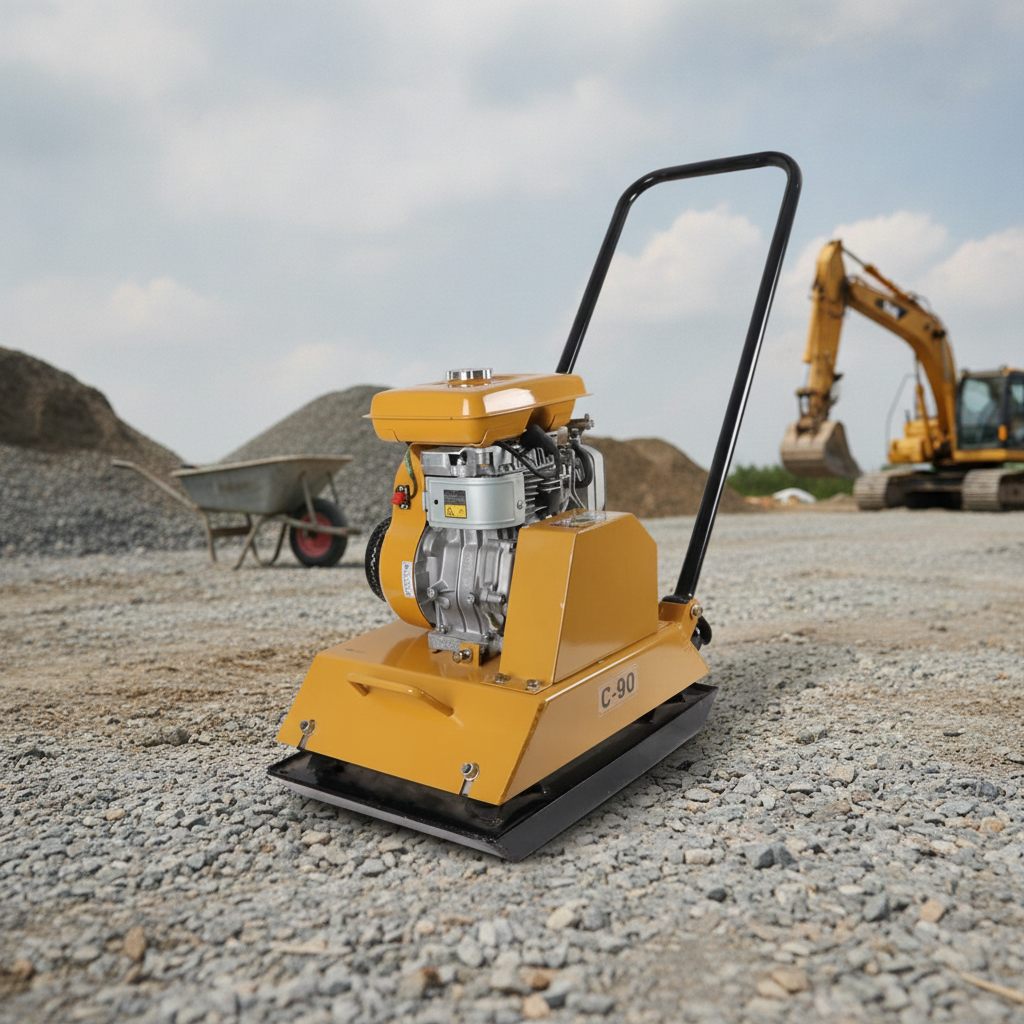

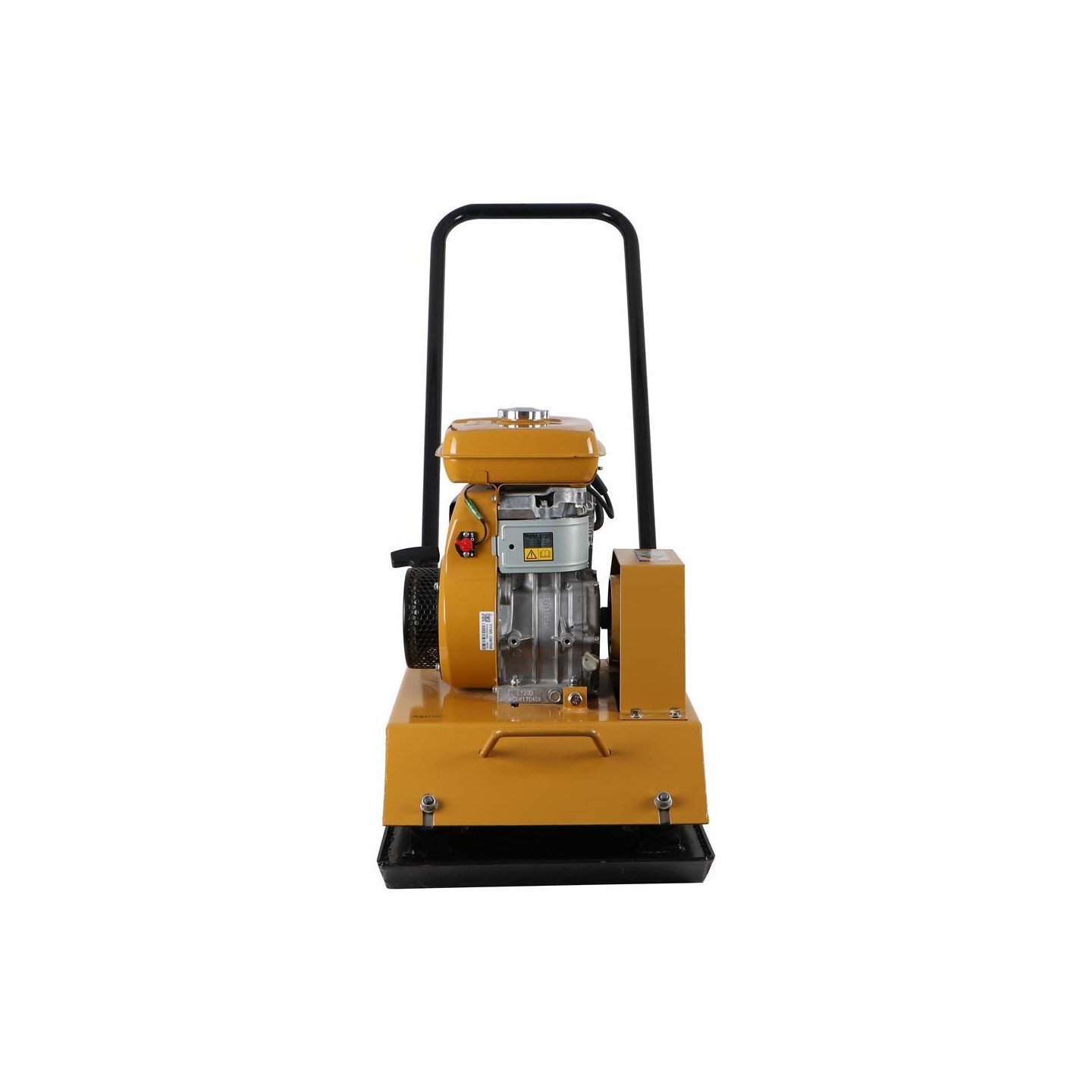

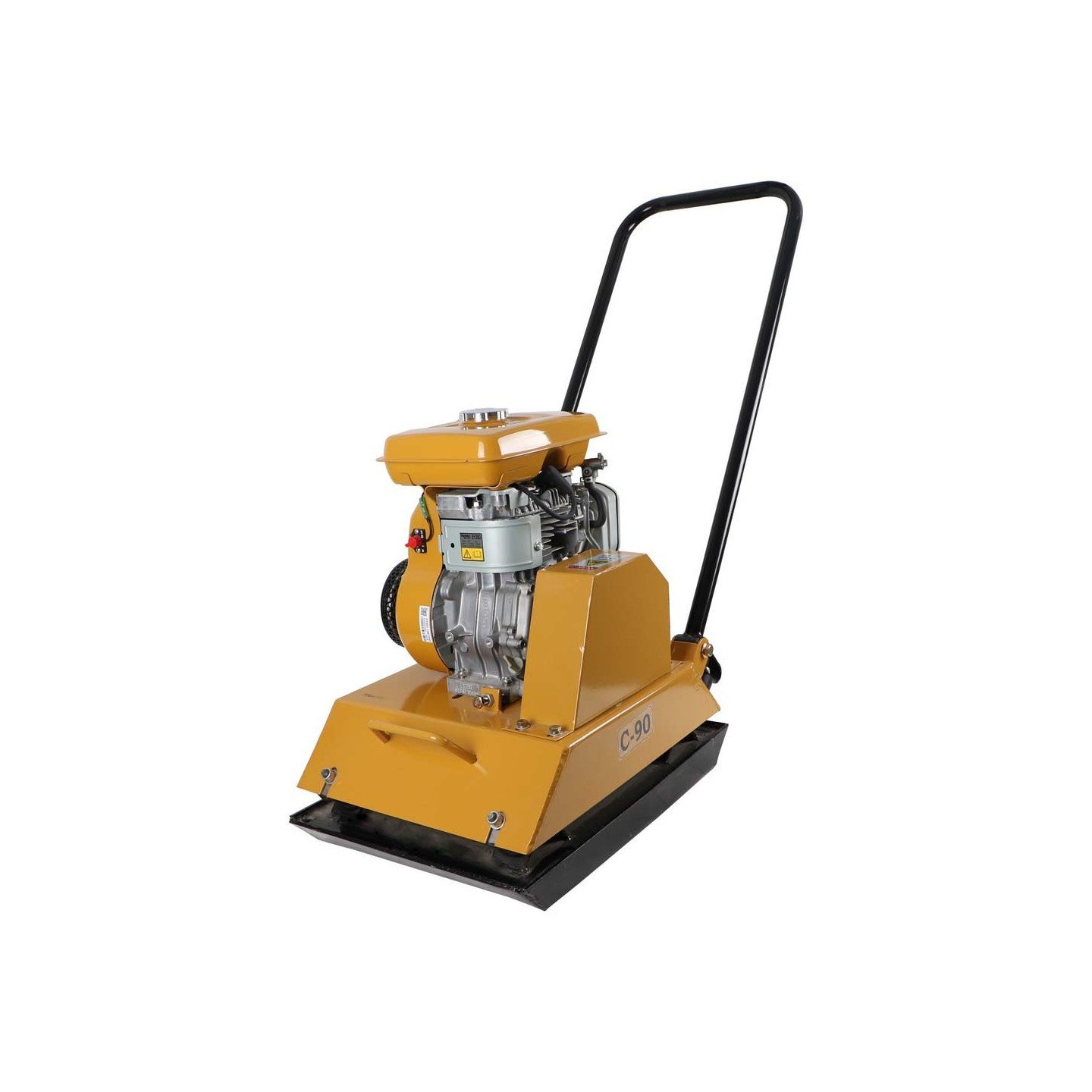

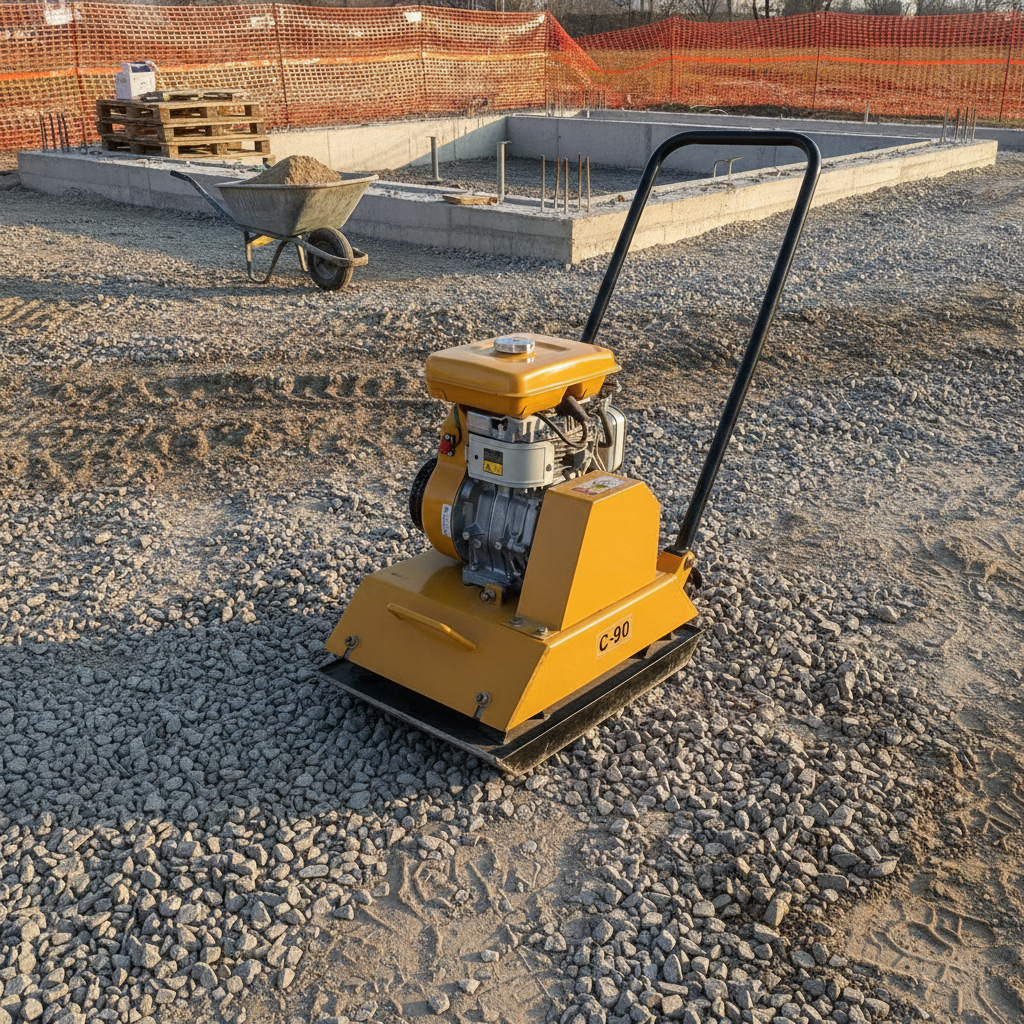

C-90 Plate Compactor – 4HP Petrol Vibratory Compactor
Heavy-Duty Plate Compactor for Soil, Gravel, Sand & Asphalt Compaction
Overview
The C-90 Plate Compactor is a 4HP petrol vibratory compactor built for contractors, landscapers, and road crews. Compact soil, gravel, sand, and asphalt with 13kN of compaction force. Essential for foundations, driveways, paving blocks, trenches, and road repairs. Folding handle and transport wheels make it jobsite-ready.
Key Features
- 4HP Petrol Engine: Reliable 4-stroke OHV engine delivers consistent power. Easy recoil start.
- 13kN Compaction Force: 13,000N impact force at 4200 vpm for deep, fast compaction up to 300mm depth.
- 450mm x 350mm Plate: Heavy-duty ductile iron base plate with curved edges. Won’t dig in or mark asphalt.
- Water Tank Included: 13L removable water tank for asphalt compaction. Prevents asphalt sticking to plate.
- Folding Handle: Ergonomic, vibration-reducing handle folds for transport and storage.
- Transport Wheels: Built-in wheels for easy movement around site. No lifting required.
- Protective Frame: Full steel frame with lifting point protects engine and allows crane lifting.
- Forward Travel: 20–25 m/min travel speed covers 450–540 m²/hour.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C-90 |
| Engine Type | 4-stroke, single cylinder, OHV, air-cooled |
| Engine Power | 4HP / 2.9kW |
| Displacement | 196cc |
| Compaction Force | 13kN / 13,000N / 1,300 kgf |
| Vibration Frequency | 4200 vpm / 70 Hz |
| Plate Size | 450mm x 350mm (L x W) |
| Travel Speed | 20–25 m/min |
| Compaction Depth | Up to 300mm |
| Fuel Tank | 3.6 Liters |
| Water Tank | 13 Liters |
| Fuel Type | Petrol / Gasoline |
| Weight | 65 kg |
| Dimensions | 1050mm x 450mm x 850mm (L x W x H) |
Applications
Ideal for construction, landscaping, road works, and paving projects:
| Surface | Use Case |
|---|---|
| Soil & Gravel | Foundation pads, trenches, backfill, landscaping |
| Sand | Paving block bedding, interlocking pavers, patio base |
| Asphalt | Driveways, road patches, pothole repair, car parks |
| Mixed Aggregate | Road sub-base, warehouse floors, compound surfaces |
What’s Included
- 1x C-90 Plate Compactor with 4HP engine
- 1x 13L Removable water tank kit
- 1x Folding handle with vibration dampers
- 1x Set of transport wheels
- 1x Tool kit for basic maintenance
- 1x Instruction manual
How to Use
- Check Oil & Fuel: Fill engine oil (SAE 10W-30) and petrol. Check before each use.
- For Asphalt: Fill water tank to prevent sticking. Turn on water valve.
- Start Engine: Turn fuel on, choke if cold, pull recoil starter.
- Compact: Guide machine slowly. Let plate vibration do the work. Overlap passes by 50%.
- Finish: Run engine at idle 1 min to cool. Turn off fuel. Clean plate after use.
Maintenance Tips
- Change engine oil after first 20 hours, then every 100 hours
- Clean air filter every 25 hours or when dirty
- Check V-belt tension monthly
- Grease vibrator bearings every 200 hours
- Drain water tank in cold weather to prevent freezing
Note: Use outdoors only. Wear ear protection, gloves, and steel-toe boots. Not for cohesive clay.
