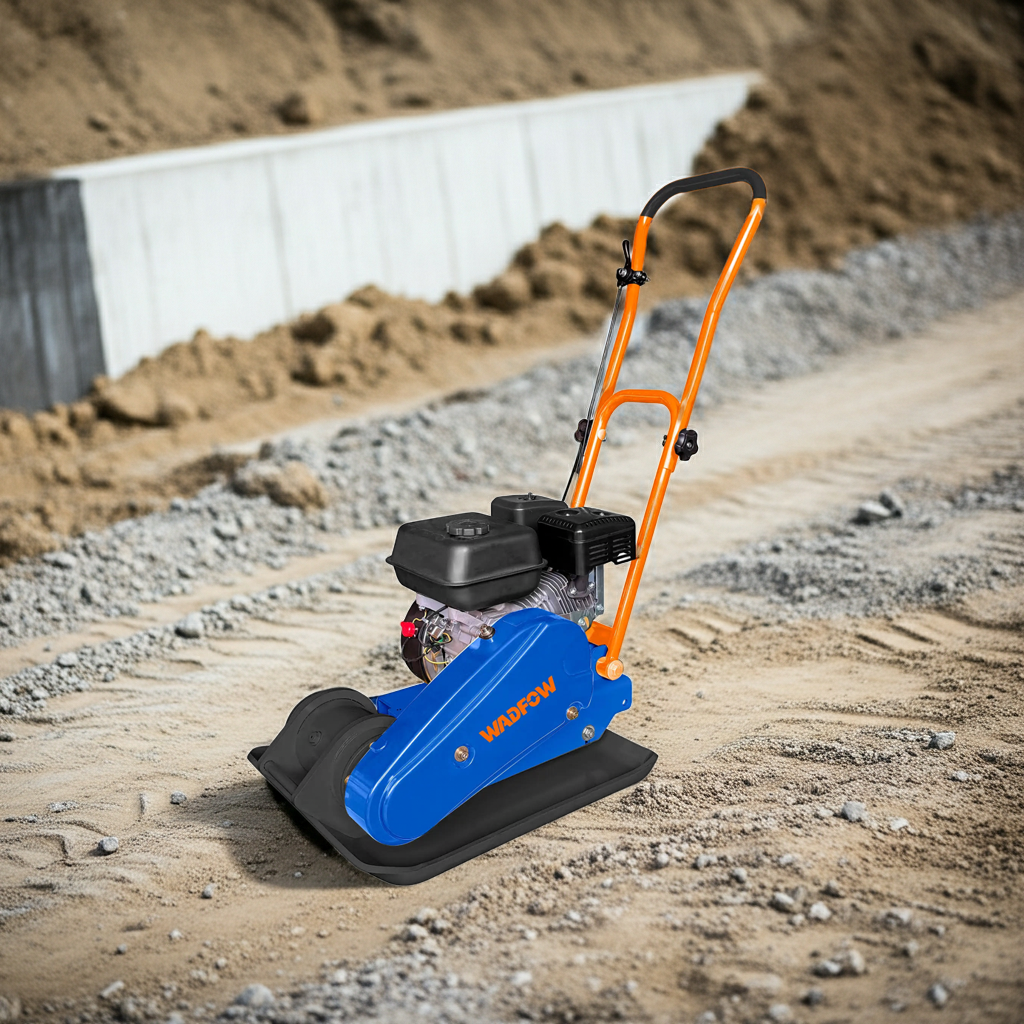

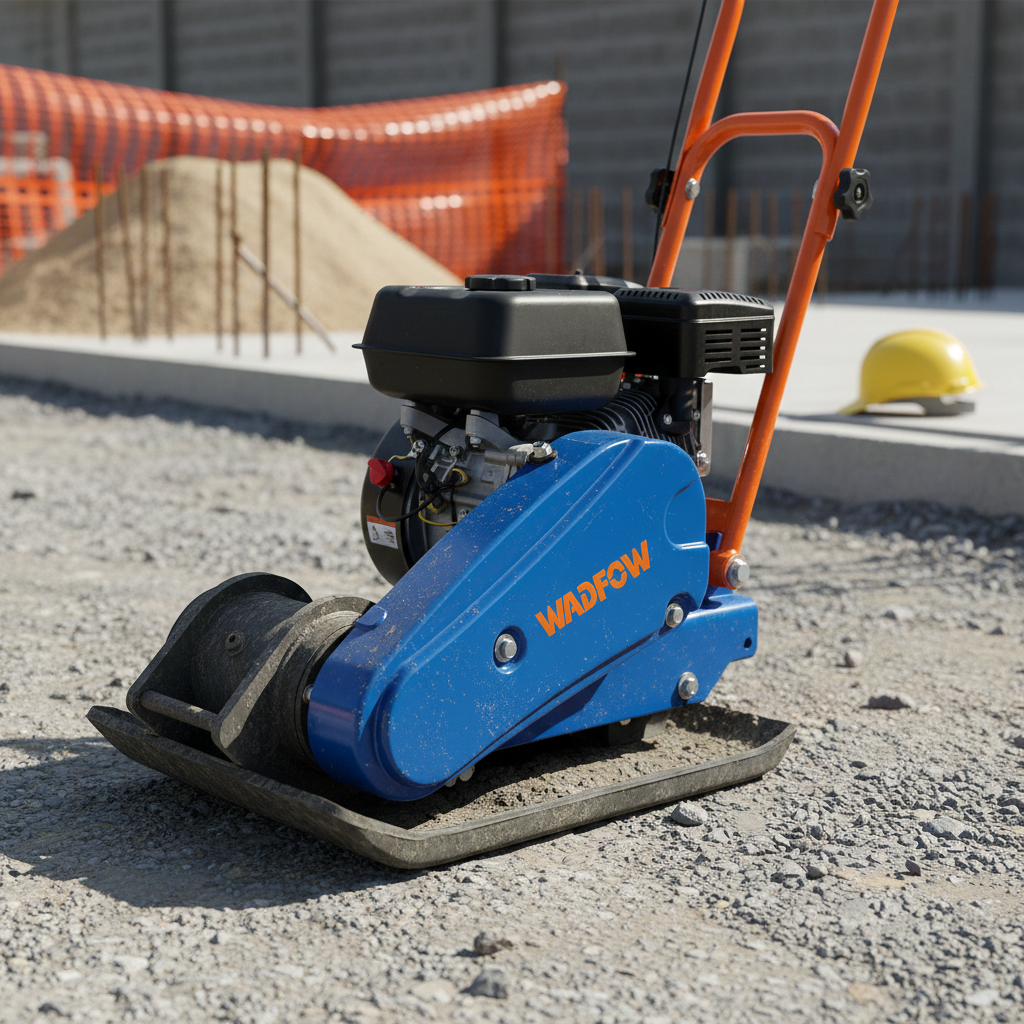

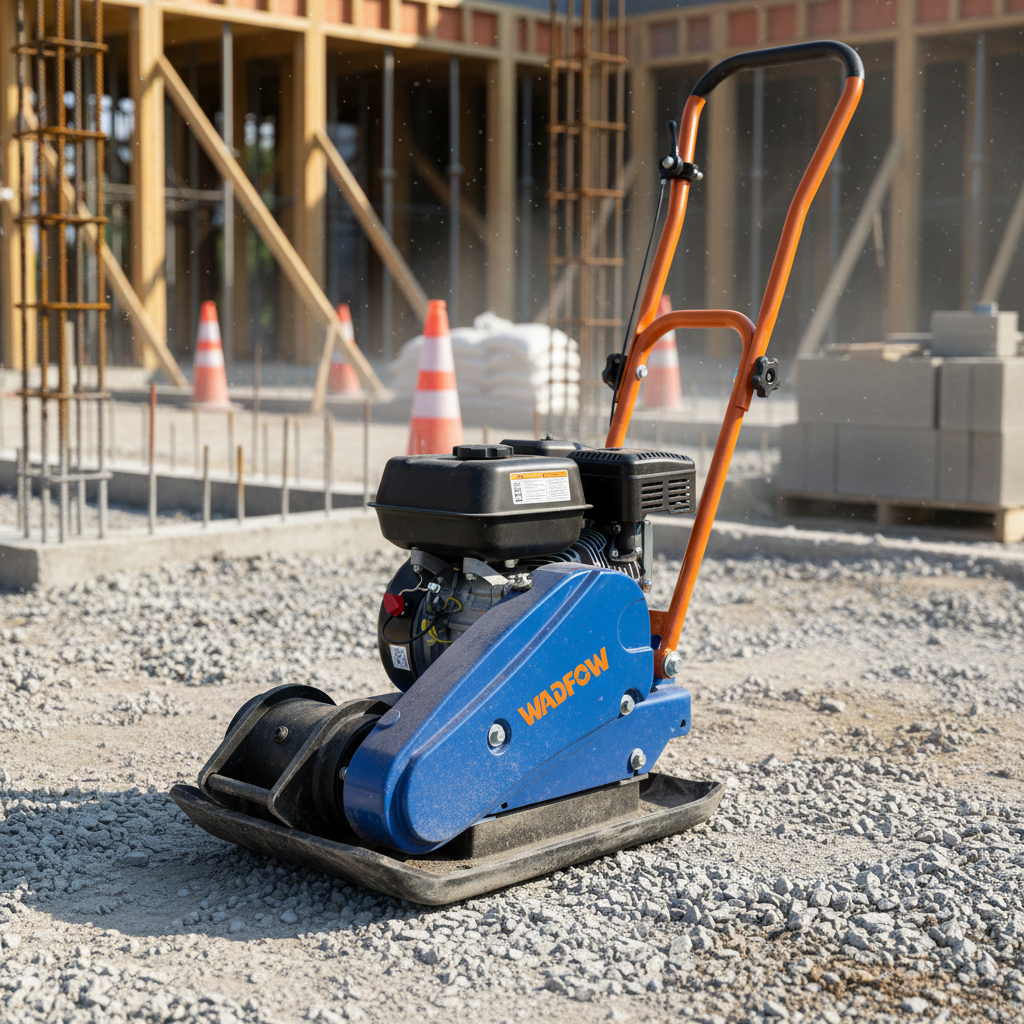

WADFOW WPM3A090 – 90KG Gasoline Plate Compactor
6.5HP plate compactor for soil, gravel, asphalt & paving work.
The WPM3A090 is a 90kg forward-plate compactor powered by a 6.5HP 4-stroke gasoline engine. With 15 kN compaction force and 560 x 420mm plate, it compacts granular soils, crushed stone, sand, and hot asphalt. Built for trenches, foundations, driveways, and interlocking paver bedding. Folding handle + wheel kit for easy transport.
Why contractors use the 90kg class:
6.5HP 4-stroke engine: 196cc OHV air-cooled motor. Same block as Honda GX200. Low oil shutdown protects engine. Recoil start.
15 kN compaction force: 5,600 vpm frequency drives moisture out of soil and locks aggregate together. Max 30cm lift per pass.
560 x 420mm plate: Cast iron plate with curved edges won’t gouge asphalt or dig in on turns.
Compact enough for trenches.
25 m/min travel speed: Covers 420 m²/hr. Faster than hand tampers, more maneuverable than 120kg+ units.
Foldable handle + wheel kit: Collapsible handle cuts storage length. Rear transport wheels let one person load into pickup.
- Gasoline engine
- Engine power:4.8Kw/6.5HP
- Weight:90KGS
- Frequency:5500VPM
- Centrifugal force:13KN
- Compaction depth:30cm
- Travel speed:38cm/s
- Efficiency:580㎡/Hr
- Plate size:54x42CM
- Packed by carton box
Includes: WPM3A090 compactor, wheel kit, rubber mat for pavers, and manual. Water tank kit sold separately.
SKU: WPM3A090
Best for: Trench backfill, interlock paving, driveway base, foundation pads, and asphalt patching. 90kg hits the sweet spot — enough force for structural fill, light enough for one-man transport.
Note: Run on soil with 8-12% moisture for best compaction. Use water tank + rubber mat on asphalt to prevent pickup. Change engine oil after first 20 hours, then every 100 hours.
