1Ton Transmission Jack – WHJ4Q10 Wadfow

WADFOW WHJ4Q10 – 1 Ton Transmission Jack

Safe, controlled lifting for gearbox removal and installation.

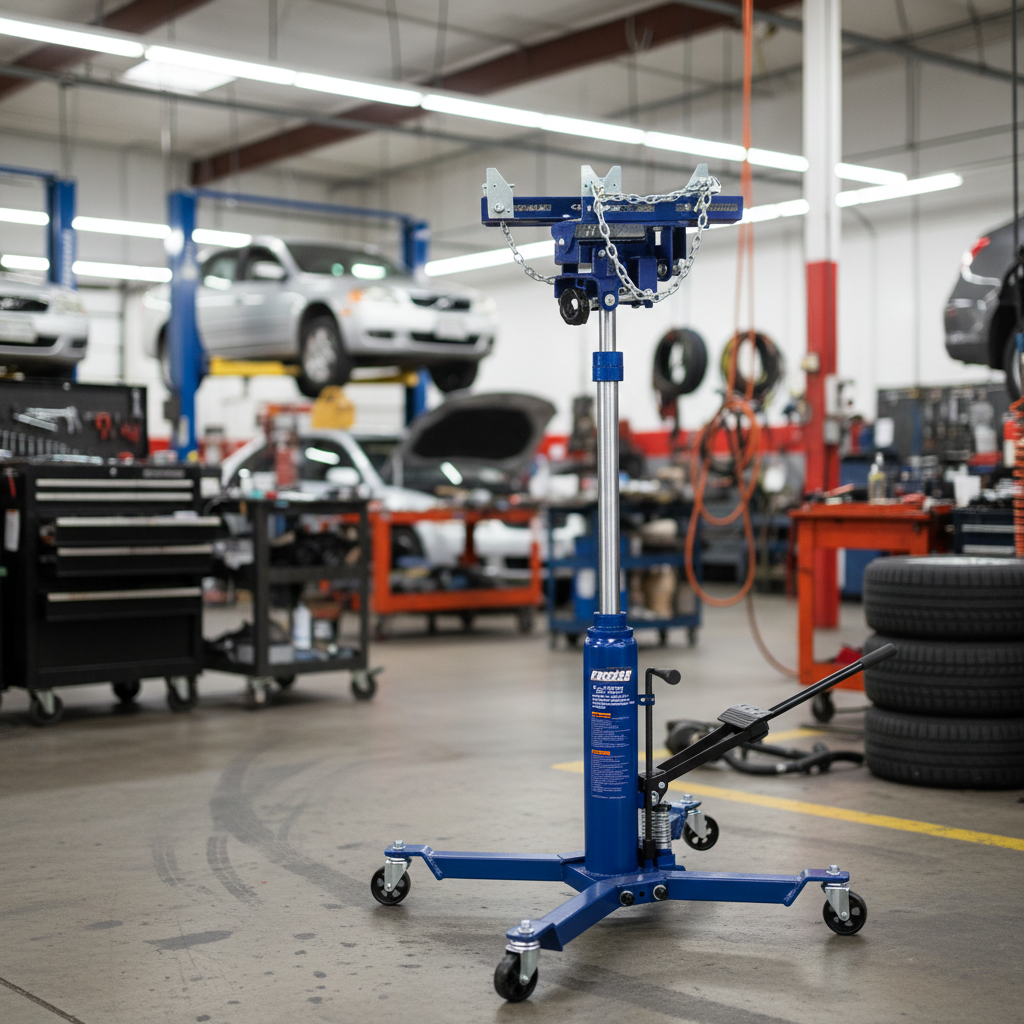

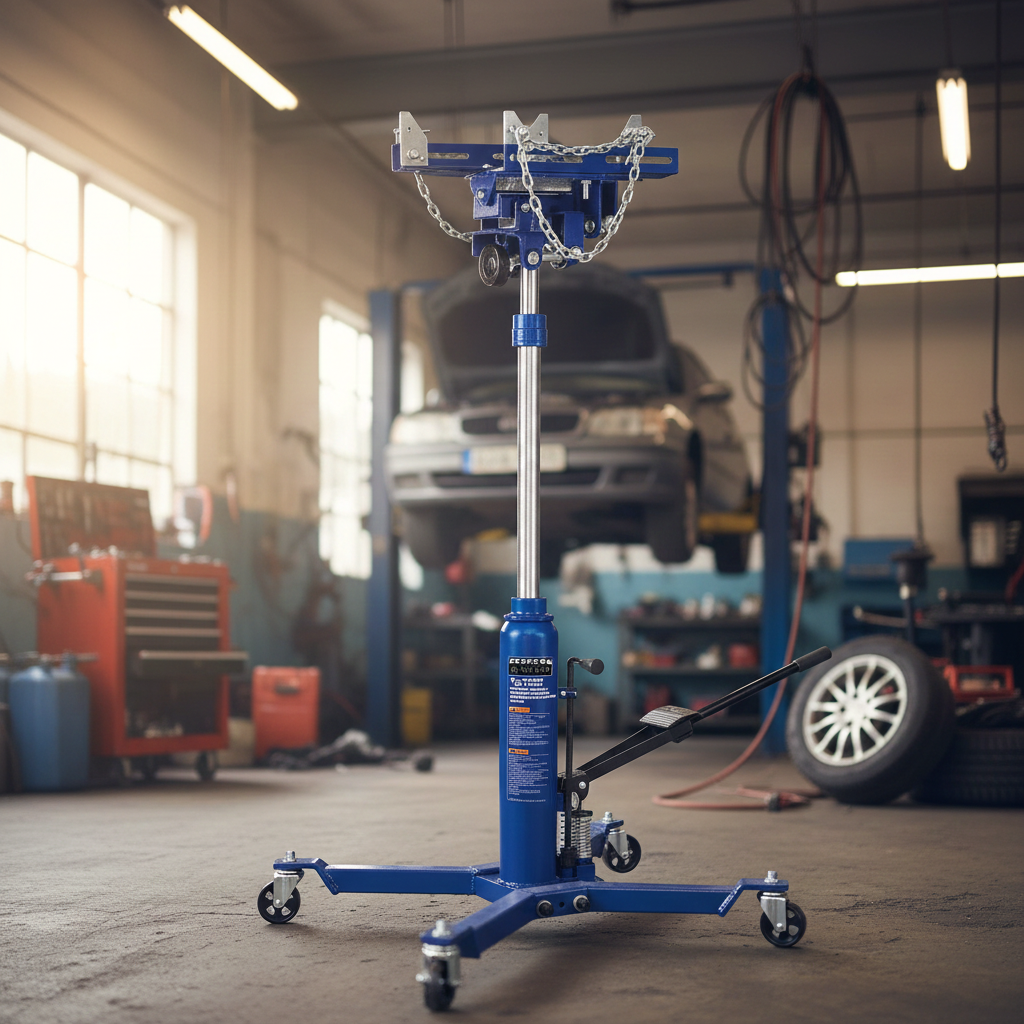

The WHJ4Q10 is a 1-ton hydraulic transmission jack designed for shops and garages. With a 360° swivel saddle, wide base, and smooth foot-pedal lift, it lets one tech safely lower and maneuver heavy gearboxes, transfer cases, and differentials. The low-profile design fits under most vehicles on lifts or stands.

Why it belongs in your bay:

-1 ton / 1000kg capacity: Handles passenger car and light truck transmissions, transfer cases, and rear diffs with confidence.

-Full 360° swivel + tilt saddle: Adjustable saddle tilts front/back and side/side to match transmission angles. 360° rotation and chain tie-downs keep loads secure.

– Foot-operated hydraulic lift: Pump with your foot, keep both hands on the load. Precision lowering valve gives slow, controlled descent.

-Stable & mobile: Wide stance with 4x swivel casters — 2 locking — for stability under load and easy positioning. Low 200mm min height fits under most vehicles.

Specifications:

Model: WADFOW WHJ4Q10
Capacity: 1 Ton / 1000 kg / 2200 lbs
Min eight: 200 mm / 7.9″
Max Height: 580 mm / 22.8″
Lift Range: 380 mm / 15″
Saddle Size: 330 x 330 mm / 13″ x 13″
Saddle Tilt: ±12° forward/back, ±12° side/side
Saddle Rotation: 360°
Lift Mechanism: Hydraulic, foot pedal operated |
Lowering Control:Hand-turn precision valve |
Base Size: 750 x 750 mm / 29.5″ x 29.5″ |
Casters: 4x swivel, 2x with brake
Safety: Chain tie-downs included, overload valve
Net Weight: 42 kg / 92.6 lbs |
Dimensions: 750 x 750 x 200 mm folded

Includes: WHJ4Q10 transmission jack, saddle with chains, and manual.

SKU: WHJ4Q10

Best for: Auto repair shops, transmission rebuilders, 4×4 service,and DIY mechanics pulling gearboxes, transfer cases, or differentials.
